IBM System x3500 M4 Server

IBM System x3500 M4 Server (7383II9)

Lenovo System x3650 M5 Server (54620UF)

Lenovo System x3650 M5 Server (54620UF)

Intel Xeon E5 (Hexa Core)



Lenovo Server Dealers

300GB  / RAID

System x3650 M5 Server

3 Year warranty

Availability: In stock

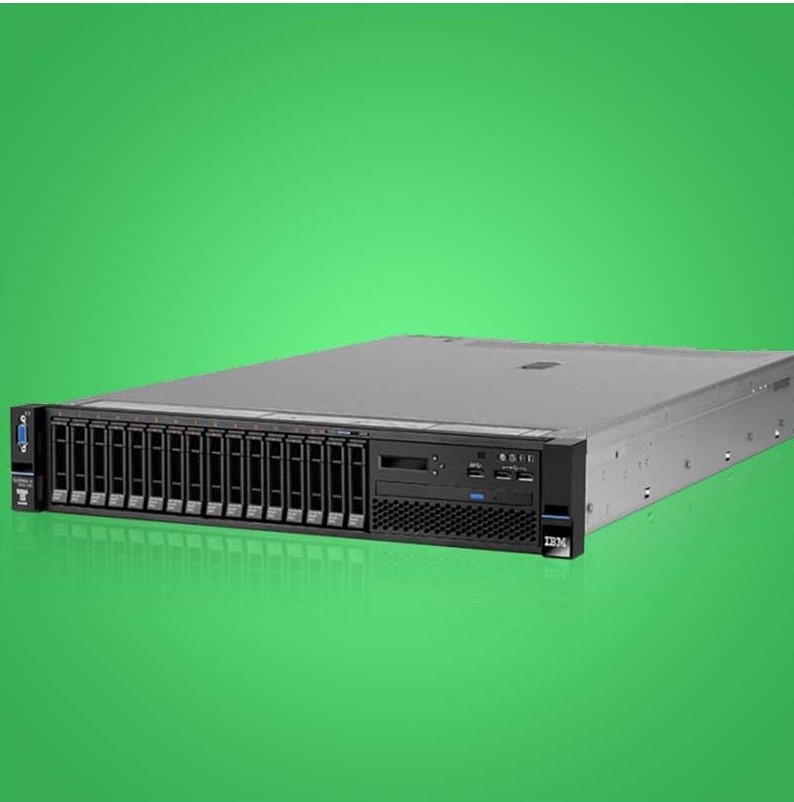

Original Lenovo System x3650 M5 Server (54620UF)

  • TWO SOCKET RACK x 3650 M5 54620UF
  • Intel Xeon E5 (Hexa Core) 2 2.4 GHz 15 MB 1866MHz
  • 16GB X 1 1.5 TB; 24 Slots
  • 1 X 300 GB SAS 10k RPM 2.5" Hot Swap SAS/ SATA 8 bay upto 18 bay
  • Multi Burner
  • Full High Bays: Max-3 Half High Bays: Max-3
  • Integrated RAID 01 (M5210)
  • Power supply 1 Max: 2
  • 3 years Onsite + 24 x7


  • Versatile 2U 2-socket rack server runs 24/7
  • 50% more cores to run more workloads
  • Energy-efficient TruDDR4 Memory
  • Flexible storage configurations
  • Industry-leading security & reliability
  • Reduced downtime & minimized costs

Features: System x3650 M5


    • Tackle enterprise workloads with power, efficiency and reliability
    • Choose from flexible storage configurations for workload-optimized performance
    • Reduce unplanned downtime and minimize costs
    • Safeguard enterprise data with built-in System x Trusted Platform Assurance, plus optional self-encrypting drives and IBM Security Key Lifecycle Manager
    • Gain superior performance with Intel® Xeon® E5-2600 v3 processors (up to 36 cores per server), end-to-end 12 Gbps RAID support—devices and infrastructure—up to four RAID adapters, and up to two 300 W GPUs
    • Run up to 131 percent greater java workload performance, up to 61 percent greater virtualization performance,§ and up to 59 percent greater database performance* per system than the previous generation
    • Reduce data center costs with smart energy-efficient features, including unique 40° C operating temperature, 80 PLUS® Titanium power supplies (up to 96 percent efficiency), active/standby power supply modes, dual fan zone design, and TruDDR4 Memory (up to 45 percent lower energy use over DDR3)††
    • Run more virtual machines and workloads with up to 50 percent more cores and cache and 2x more memory capacity per system than previous generation

 Up to 131 percent performance boost based on internal measurements as of June 2014 for representative Java-based workloads, Intel® Xeon® E5-2699 v3 (18C, 2.3 GHz, 145W) vs. Intel Xeon E5-2697 v2 (12C, 2.7 GHz, 130W)

§ Up to 61 percent performance boost based on internal measurements as of July 2014 for representative virtualization workloads, Intel E5-2697v3 (14C, 2.6 GHz, 145W) vs. Intel Xeon E5-2697 v2 (12C, 2.7 GHz, 130W)

* Up to 59 percent performance boost based on internal measurements as of June 2014 for representative database workloads, Intel Xeon E5-2699 v3 (18C, 2.3 GHz, 145W) vs. Intel Xeon E5-2697 v2 (12C, 2.7 GHz, 130W)

†† 45% claim based on internal measurements of DIMM energy consumption with 16 GB, 2Rx4, 1.5V, DDR3 1866 MHz RDIMM at 3 DPC compared with 16 GB, 2Rx4, 1.2V, DDR4 2133 MHz RDIMM at 3 DPC.

With the powerful, versatile 2U two-socket System x3650 M5 rack server, you can run even more workloads, 24/7, and gain faster business insights. Integrated with up to two Intel® Xeon® processors E5-2600 v3 series and faster TruDDR4 Memory, the x3650 M5 fast forwards your business. You can select from an impressive array of storage configurations (up to 26 drive bays) that optimize diverse workloads from cloud to big data.

Simplify Provisioning and Systems Management

Simplify, automate, and modernize Day 1 provisioning and ongoing administrative tasks over the server lifecycle with Lenovo XClarity.

Server dealers

More Information
Installation No
Model System x3650 M5
Part No. 54620UF
Processor Speed 2.4GHz
Processor Cores Hexa Core
Warranty 3 Years Onsite
Hard Drive Bays 8
Form Factor SFF (2.5inch)
Power Wattage Up to 1/2 redundant 550 W AC, 750 W AC, 900 W AC, 1500 W AC, 900 W DC 80 PLUS® Platinum, or 750 W AC 80 PLUS Titanium
Additional Processor -
DVD Drive Multi Burner
Network Controller 4 x 1 GbE (std) and 1 x IMM; optional 10/40 GbE ML2 or PCIe adapter; Trusted Platform Module built-in
Monitor No
Hard Drive 300GB
Operating System No
Processor Intel Xeon E5 (Hexa Core)
Processors Included 1
Cache 15MB
Power Supplies 1
DIMM slots 24
Memory Type DDR 4
Hard Drive Type Hot Plug
RAID Controller Integrated RAID 01 (M5210)
Remote Console IMM2.1; one IMM dedicated port and one shared; optional remote presence; Predictive Failure Analysis; LEDs; optional next-gen light path diagnostics panel
Processor Sockets 2
System Type Rack
Recommend High Level
Memory 16 GB
accessory type Ram
